• Long throw radius and high distribution uniformity through modern nozzle technology
  • Optional: Easier installation and maintenance using the CID (Coil Integrated Decoder)
  • Central flow system reduces hydraulic friction and improves efficiency
  • Both left (+/-90°) and right (30-330°) stop adjusting of the arc
  • Arc adjusting also when sprinkler is in operation
  • Real top serviceability for all components
  • Adjustment of the rotation speed from 130 to 280 seconds for 360°

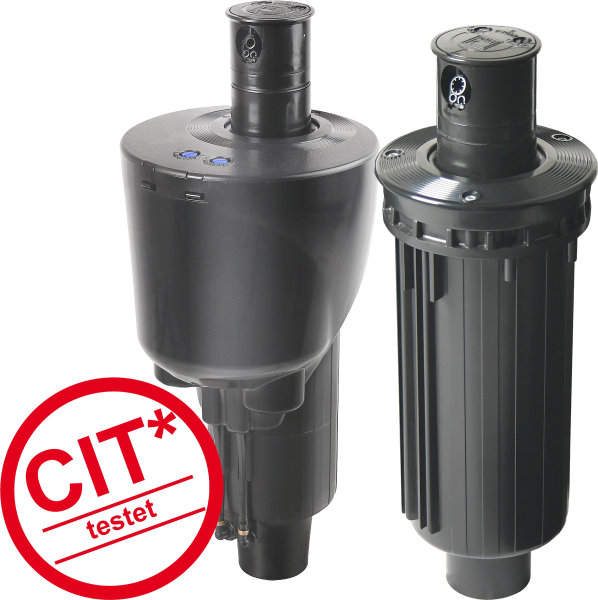

Hydra-2-M

Applications:

golf greens, fairways,
sport fields, parks

Downloads: Data sheet HYDRA-2-M Operating manual HYDRA-2-M VAC Operating manual HYDRA-2-M H Operating manual HYDRA-2-M HTC-WHTC Installation Manual Artificial Grass Top HYDRA-2-M SWVAC Spare parts list HYDRA-2-M Description CIT-TEST
Videos:
Hydra-Series-Golf Video Hydra-2-Serie Hydra 2-M - How to change the nozzle
Technical specifications
Casting range:
20,0 - 29,0 m
Nozzle variations:
7,0 - 11,0 mm
No. of nozzles:
with 3 and 4 nozzles
Op pressure:
3,5 - 7,0 bar
Flow rate:
4,20 - 12,80 m³/h
Trajectory:
25°
Inlet:
1 1/2" female thread Inlet bushing made of brass
CIT nozzle size:
9 mm
CIT formation:
22,8 x 19,7 m
CIT value:
CU 92 - DU 87

HYDRA-2-S

Applications:

golf tees, golf greens, parks,
private gardens

Downloads: Data sheet HYDRA-2-S Operating manual HYDRA-2-S Operating manual HYDRA-2-S VAC Spare parts list HYDRA-2-S Description CIT-TEST
Videos:
Hydra-Series-Golf Video Hydra-Series-Video Hydra 2-S - How to change the nozzle
Technical specifications
Casting range:
14,0 - 25,0 m
Nozzle variations:
4,0 - 9,0 mm
No. of nozzles:
with 3 and 4 nozzles
Op pressure:
3,5 - 7,0 bar
Flow rate:
2,50 - 10,90 m³/h
Trajectory:
25°
Inlet:
1“ female thread Inlet bushing made of brass
CIT nozzle size:
7 mm
CIT formation:
20 x 25
CIT value:
CU 93 - DU 90

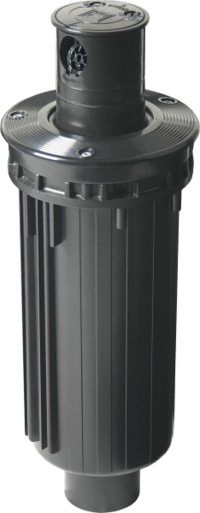

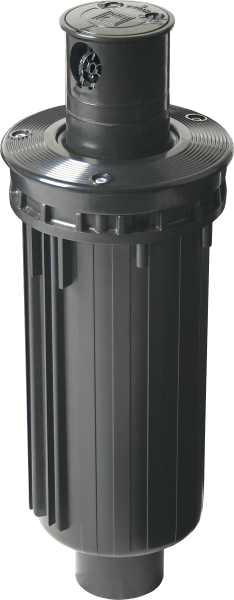

HYDRA-2-XS

Applications:

parks, tennis courts, sport fields,
golf courses, private gardens

Downloads: Data sheet HYDRA-2-XS Operating manual HYDRA-2-XS Spare parts list HYDRA-2-XS / S
Videos:
Hydra-Series-Video Hydra-Series-Golf Video
Technical specifications
Casting range:
13,0 - 19,0 m
Nozzle variations:
4,0 - 6,0 mm
No. of nozzles:
with 1 nozzle
Op pressure:
3,0 - 6,0 bar
Flow rate:
1,00 - 3,20 m³/h
Trajectory:
25°
Inlet:
1“ female thread Inlet bushing made of brass
