Accessories

Decoder

Available versions: Available versions: Verfügbare Versionen:

Decoder PD5/AC-1 for 1 station

Decoder PD5/AC-4 for 4 stations

Decoder PD5/AC-6 for 6 stations

Decoder for activating or deactivating solenoid valves, pop-up sprinklers with built-in solenoid valves and pumps.

The address of the decoder can be programmed as often as required. Each decoder can control two solenoid valves. The decoders are surge resistant up to 2 KV.

The LED display in the decoder provides various status information. Waterproof encapsulation is IP 66.

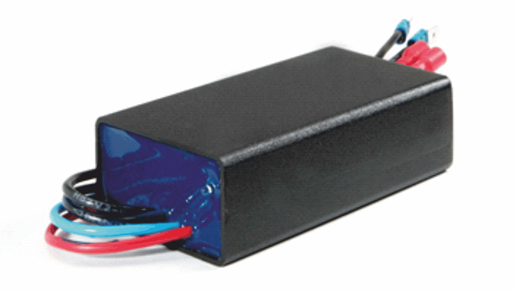

Feedback-Decoder

Available versions:

Decoder PD/F-1 bidirectional for 1 station

This decoder has the same basic features as the simple decoder. In connection with a pressure sensor on the solenoid valve or in the pop-up sprinkler, this bidirectional decoder can - in addition to the information whether water is flowing or not - provide additional diagnoses to the control:

E.g. short circuit on the valve coil, connection valve coil / decoder interrupted, no response from decoder or valve coil was activated 66.

Pressure sensor

Available versions:

PDS pressure sensor
Switching point 2.0 bar

PDS pressure sensor
Switching point 1,2 bar

Pressure sensor for installation in a solenoid valve, can be used in conjunction with a feedback decoder.

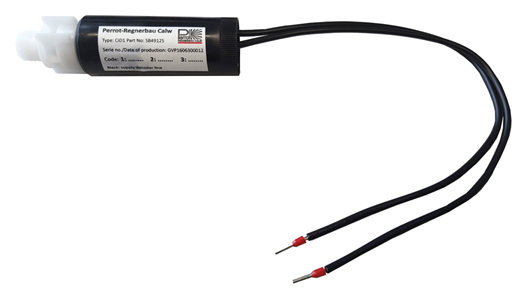

CID - Coil with decoder

Available versions: Available versions: Verfügbare Versionen:

CID (Coil integrated Decoder) for 1 station

CID for activating or deactivating solenoid valves and pop-up sprinklers with built-in solenoid valves. Retrofitting the pop-up sprinkler is only possible from Hydra 2, Triton and VP3. The address of the decoder can be programmed as often as required. The decoders are surge resistant up to 2 KV. LED display in the decoder gives various status information.

Watertight encapsulation is IP 66. All PERROT central controls can also be retrofitted. Less space required such as decoder and coil separately.

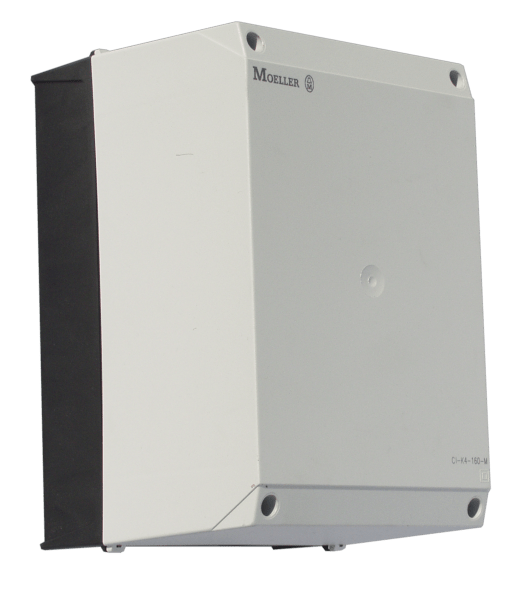

Pump decoder

Available versions:

PPD-1 for 1 pump

PPD-2 for 2 pumps

PPD-3 for 3 pumps

PPD-4 for 4 pumps

PPD-5 for 5 pumps

The pumps are activated for irrigation by the pump decoder and switched on or off as required. This process is carried out by the pump management in the Perrot central controls executed.

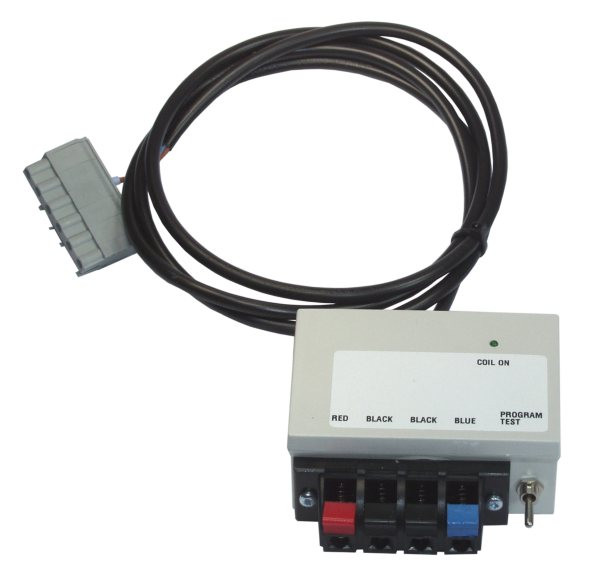

Decoder programming device

Available versions:

DPG-Programming Device

for programming and testing the decoder

The programming device for the decoder is connected to the valve control unit (VCU). Then the decoders can be programmed with the designated station number. The device has an LED display to check the programming.

Decoder-Programming cable

Available versions:

DPK-Programming Cable

for programming the decoder

The programming cable for the decoder is connected to the valve control unit (VCU). Then the decoders can be programmed with the designated station number.

Wireless Transmitter

Available versions:
  • Wireless transmitter for all Perrot central controls

Radio transmitter for wireless communication with the Perrot central controls. Open and close valves, start and stop irrigation programs. Automatic synchronization of the valve data. No radio license required in all European countries.

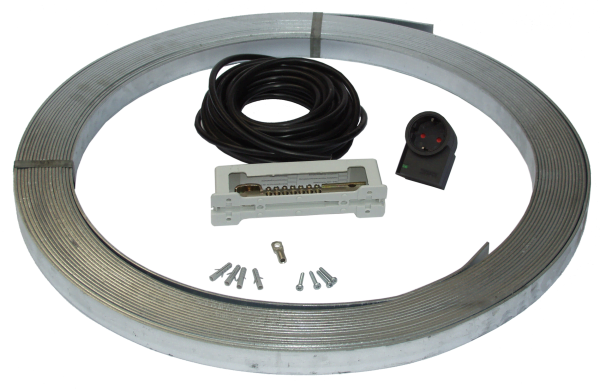

Earthing surge protection

Available versions:

Grounding device

for central controls



The grounding of the control unit (VCU) serves to protect the irrigation control against overvoltage (such as lightning strikes). The shielding goes up to an overload of 8 KV. The overload protection consists of a mains protection adapter and a grounding device.

Rain sensor MiniClik

Available versions:

MiniClik – Rain sensor

The MINICLIK is a "must" for all automatic irrigation systems. It automatically prevents any superfluous irrigation during natural precipitation.

The MINICLIK works as an opener and is compatible with the WaterControl + SC control unit and the Perrot central controls. No program changes are necessary. Interruption and restart work automatically.
